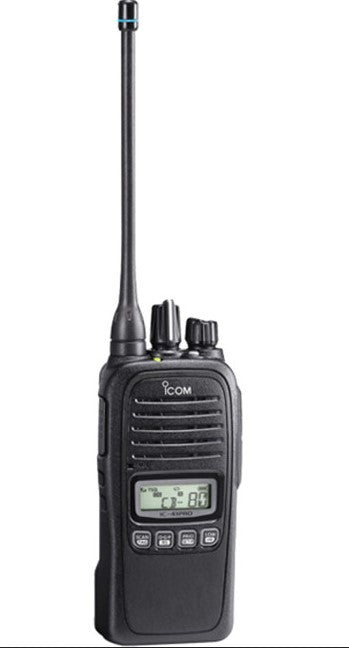

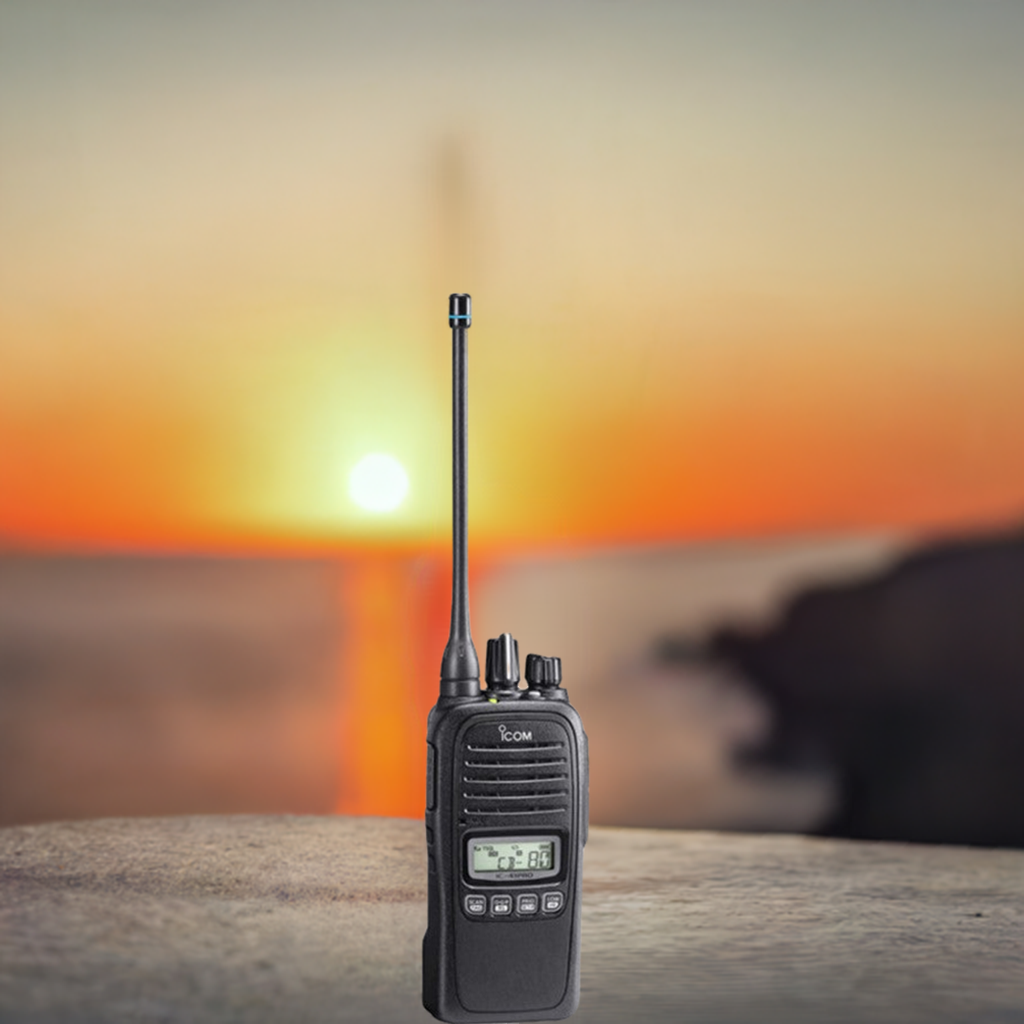

IC-41PRO UHF CB HANDHELD 5WATT

The 1500mW volume audio from Icom custom speaker facilitates loud and clear communication.

The combination of the optional HM-222HLWP and the IC-41PRO* also provides 1500 mW (typ.) loud audio from the attached speaker-microphone.
* For the transceiver with a "U" mark on the serial number label.


5 Watts (High) and 1 Watt (Low) Selectable RF Output Power

The IC-41PRO is completely protected against dust ingress and is also waterproof (one meter depth for 30 minutes). All radios are pressure tested to 12 categories of MIL-STD-810-G environmental test.

80 Channel UHF CB plus up to 35 Receive only Channels

A Lithium-ion battery pack (BP-280) included provides 18 hours* of operating time

*Typical operation Tx:Rx:Stand-by = 5:5:90. Power save function ON

Allows users to easily change channels

Light and slim design makes it easy to carry around

• 18 hr (typical) operating time with BP-280
• Voice announcement of channel number
• VOX capacity with optional headset
• Up to 35 channels of Receive only channel*
• Unique repeater scan plus open, group and priority scan
• In-range Indicator (ATS)
• Built-in CTCSS/DCS for providing silent stand-by
• Selective Calling (SELLCALL) functions
• Duplex operation, providing repeater access
• Commercial base construction, Compact and Rugged
• Private Channels from 450 - 520MHz available for commercial users*

• General

  		IC-41PRO
  Frequency coverage		476.4250 MHz to 477.4125 MHz AUS CB 450 MHz to 520 MHz Private/Receive Only
  Number of channels		128 channels
  Type of emission		W: 16K0F3E (25.0 kHz) AUS CB N: 8K50F3E (12.5 kHz) AUS CB
  Power supply requirement		7.5 V DC
  Current drain (approx.)	Tx High (5W)	1.7 A
  	Rx Max. audio	500 mA (Internal SP)
  Antenna impedance		50 Ω
  Operating temperature range		–30°C to +60°C
  Dimensions (W × H × D; Projections not included)		52.2 × 111.8 × 30.3 mm (With BP-280)
  Weight (approx.)		270 g (With BP-280)




  Transmitter

  		IC-41PRO
  Output power		5 W
  Maximum permissible deviation		± 2.5 kHz (12.5 kHz) ±5.0 kHz (25.0 kHz)
  Frequency error		±2.5 ppm
  Spurious emissions		70 dB min.
  Adjacent channel power		60 dB min.; 69 dB typ. (12.5 kHz) 70 dB min.; 74 dB typ. (25 kHz)
  Audio harmonic distortion		1.0% typ. (12.5 kHz) 1.5% typ. (25 kHz) (at AF 1 kHz 40% deviation)
  FM Hum and Noise (without CCITT filter)		34 dB  min.; 40 dB typ. (12.5 kHz) 40 dB min.; 46 dB typ. (25 kHz)




  Receiver

  		IC-41PRO
  Sensitivity (at 12dB SINAD)		0.25 μV typ.
  Adjacent channel selectivity		40 dB min.; 56 dB typ. (12.5 kHz), 70 dB min.; 73 dB typ. (25 kHz)
  Spurious response rejection		70 dB min.
  Intermodulation rejection		70 dB min.; 73 dB typ.
  Hum and noise (without CCITT filter)
  		34 dB min.; 43 dB typ. (12.5 kHz) 40 dB min.; 49 dB typ. (25 kHz)
  Squelch sensitivity		0.25 μV typ.
  AF output power (at 5% distortion 8Ω load )	Internal SP	1500 mW typical
  	External SP	450 mW typical (single end) 1500 mW typical (BTL, HM-222HLWP connected*)


  * For the transceiver with "U" mark on the serial number label.




  Applicable U.S. Military Specifications and IP rating

  Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.


  Standard	MIL-810 G
  	Method	Procedure
  Low Pressure Storage	500.5 I	I
  Low Pressure Operation	500.5	II
  High Temperature Storage	501.5	I
  High Temperature Operation	501.5	II
  Low Temperature Storage	502.5	I
  Low Temperature Operation	502.5	II
  Temperature Shock	503.5	I-C
  Solar Radiation	505.5	I
  Rain Blowing	506.5	I
  Rain Drip	506.5	III
  Humidity Induced	507.5	II
  Salt Fog	509.5	-
  Dust Blowing	510.5	I
  Immersion	512.5	I
  Vibration	514.6	I
  Shock Functional	516.6	I
  Shock Transit Drop	516.6	IV


  Also meets equivalent MIL-STD-810-C, -D -E and -F.




  Ingress Protection Standard
  Dust & Water	IP67 (Dust-tight and waterproof protection)


  All stated specifications are subject to change without notice or obligation.




  Supplied accessories

  • Battery pack, BP-280
  • Desktop charger, BC-213
  • AC adapter, BC-123SV
  • Belt clip, MB-133
  • Antenna, FA-SC72U
