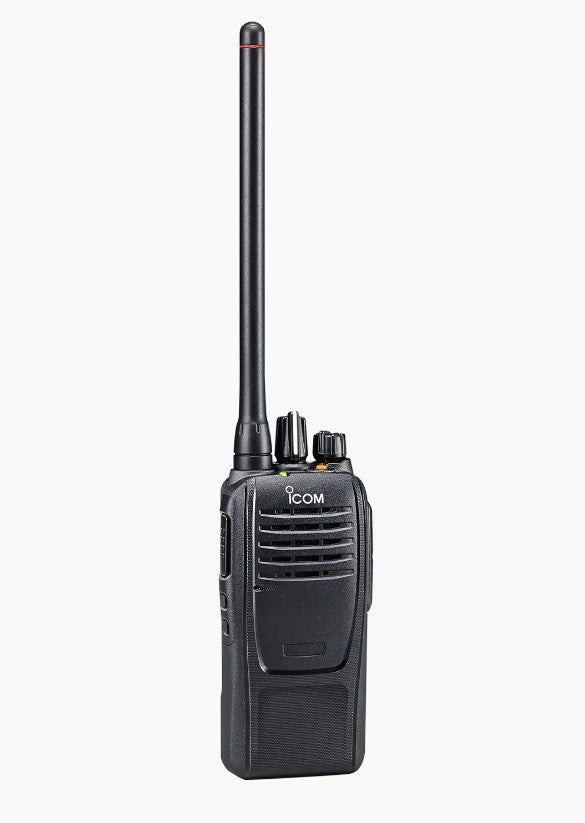

IC-F2100D-H ICOM

IC-F2100D-H ICOM

$462.00
$462.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

VHF AND UHF DIGITAL TRANSCEIVERS

IC-F1100D
IC-F2100D
Series

Big on Audio, Small on Size 1500 mW Class Leading Audio

 VHF/Full keypad
IC-F1100DT
VHF/Simple keypad
IC-F1100DS
VHF
IC-F1100D
UHF/Full keypad
IC-F2100DT
UHF/Simple keypad
IC-F2100DS
UHF
IC-F2100D

General

IC-F1100DT/S IC-F1100D IC-F2100DT/S IC-F2100D
Frequency coverage*
(*Varies according to version)		 136–174 MHz (NXDN/dPMR) 350–400 MHz (NXDN, EXP, IC-F2100D only)
400–470 MHz (NXDN/dPMR USA/EUR/EXP)
450–512 MHz (NXDN, USA)
450–520 MHz (NXDN, EXP)
Number of channels

128 channels/ 8 zones

 16 channels 128 channels/ 8 zones 16 channels
Type of emission*
(*Depending onversion)

11K0F3E, 4K00F1E, 4K00F1D (USA)

16K0F3E, 14K0F3E, 11K0F3E, 8K50F3E, 4K00F1E, 4K00F1D (EXP)

16K0F3E, 14K0F3E, 8K50F3E, 4K00F1E, 4K00F1D (EUR)
Power supply requirement

7.5V DC nominal
Current drain
(approx.)		 Tx

1.3A

1.6 A (at 5 W)
1.4 A (at 4 W)
Rx

520 mA /110 mA
(Max. audio (internal SP)/Standby)

520 mA /110 mA
(Max. audio (internal SP)/Standby)
Antenna impedance

50Ω
Operating temperature range
(Radio specification)

–30°C to +60°C; –22°F to +140°F (Radio specification) (USA/EXP)

–25°C to +55°C (Radio specification) (EUR)
Dimensions
(W × H × D; Projections not included)

IC-F1100DS/D, IC-F2100DS/D:
52.2 × 111.8 × 29.4 mm; 2.1 × 4.4 × 1.2 in (With BP-280)

IC-F1100DT, IC-F2100DT:
52.2 × 111.8 × 34.1 mm; 2.1 × 4.4 × 1.3 in (With BP-280)
Weight (approx.)

IC-F1100D, IC-F2100D: 258 g, 9.1 oz (With BP-280 and MB-133)
IC-F1100DS, IC-F2100DS: 266 g, 9.4 oz (With BP-280 and MB-133)
IC-F1100DT, IC-F2100DT: 277 g, 9.8 oz (With BP-280 and MB-133)

Transmitter

IC-F1100DT/S IC-F1100D IC-F2100DT/S IC-F2100D
Output power
(Hi, L2, L1)

5 W, 2 W, 1 W

5 W, 2 W, 1 W
Maximum frequency deviation

± 5.0 kHz (25 kHz), ±4.0 kHz (20 kHz), ±2.5 kHz (12.5 kHz)
Spurious emissions

70 dB minimum (USA/EXP)

0.25 μW (≤ 1 GHz), 1.0 μW (> 1 GHz) (EUR/EXP)
Frequency stability

±2.0ppm

±1.0ppm
Audio harmonic distortion

0.8% typ. (25 kHz),
0.9% typical (20 kHz),
1.0% typical (12.5 kHz)
(at AF 1 kHz 40% deviation)

0.7% typ. (25 kHz),
0.9% typical (20 kHz),
1.0% typical (12.5 kHz)
(at AF 1 kHz 40% deviation)
FM Hum and Noise
(without CCITT filter)

46 dB typ. (25 kHz) (EXP),
44 dB typ. (12.5 kHz) (USA/EXP)

44 dB typical (12.5 kHz) (USA)
Residual modulations
(with CCITT filter)

51 dB typical (25 kHz),
49 dB typical (20 kHz),
45 dB typical (12.5 kHz) (EUR/EXP)

54 dB typical (25 kHz),
52 dB typical (20 kHz),
48 dB typical (12.5 kHz) (EUR/EXP)
FSK error

5% maximum
External microphone connector

3-conductor 2.5 (d) mm (1/10 in)/2.2 kΩ

Receiver

IC-F1100DT/S IC-F1100D IC-F2100DT/S IC-F2100D
Sensitivity Analog (at 12dB SINAD)

0.24 μV typical

0.24 μV typical
Analog (at 20dB SINAD)

–5 dBμV typ. emf (25/20 kHz),
–2 dBμV typ. emf (12.5 kHz)

–5 dBμV typ. emf (25/20 kHz),
–2 dBμV typ. emf (12.5 kHz)
Digital (at 5% BER)

–9 dBμV typical emf
(0.18 μV typical)

–8 dBμV typical emf
(0.20 μV typical)
Adjacent channel selectivity

77 dB typ. (25 kHz),
75 dB typ. (20 kHz),
67 dB typ. (12.5 kHz),
59 dB typ. (digital)

76 dB typ. (25 kHz),
75 dB typ. (20 kHz),
69 dB typ. (12.5 kHz),
58 dB typ. (digital)
Spurious response rejection

80 dB typical
Intermodulation rejection Digital

71 dB typ. (USA/EXP),
74 dBμV emf typ. (EUR/EXP)

70 dB typ. (USA/EXP),
74 dBμV emf typ. (400–470 MHz, EUR/EXP)
Analog

76 dB typ. (25 kHz, EXP),
75 dB typ. (12.5 kHz, USA/EXP),
69 dB typ. (EUR/EXP)

77 dB typ. (25 kHz, EXP),
77 dB typ. (12.5 kHz, USA/EXP),
70 dB typ. (EUR/EXP)
Hum and noise (With CCITT filter)

48 dB typ. (25 kHz, EXP),
43 dB typ. (12.5 kHz, USA/EXP)

42 dB typical (12.5 kHz, USA)
(Without CCITT filter)

51 dB typ. (25 kHz),
49 dB typ. (20 kHz),
46 dB typ. (12.5 kHz)
(EUR/EXP)

50 dB typ. (25 kHz),
48 dB typ. (20 kHz),
45 dB typ. (12.5 kHz)
(EUR)
AF output power
(at 5% distortion 8Ω load)		 Internal SP

1500 mW typical
External SP

450 mW typical (single end)
1500 mW typical (BTL, HM-222HLWP connected*)

400 mW typical (single end)
1500 mW typical (BTL, HM-222HLWP connected*)
External speaker connector

2-conductor 3.5 (d) mm (1⁄8 in)/8 Ω



All stated specifi cations are subject to change without notice or obligation.
Measurements made in accordance with TIA-603 (USA/EXP) or EN 300-086 (EUR).
* For the transceiver with "U" make on the serial number label.
