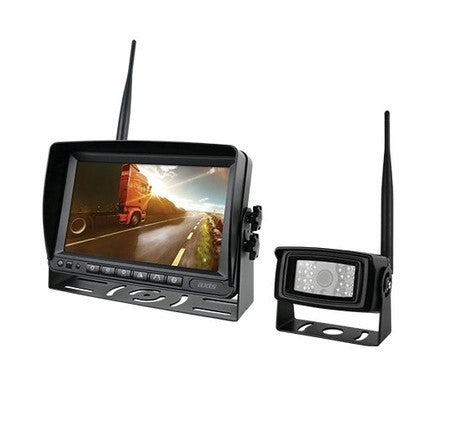

JS071WK - 7″ Heavy Duty Wireless Reversing System and Camera
DETAILS
JS071WK - 7″ Heavy Duty Wireless Reversing System and Camera
Overview
The JS071WK is a high-performance wireless reversing system designed to enhance safety and convenience while maneuvering your vehicle. Featuring a 7-inch heavy-duty monitor and a robust camera, this system is ideal for large vehicles such as trucks, RVs, and trailers.
Key Features
-
7-Inch Monitor: Provides a clear and detailed view with a large, high-resolution display. The monitor is built to withstand tough conditions and can be mounted securely in your vehicle's cabin.
-
Wireless Connectivity: Eliminates the need for complex wiring between the camera and monitor, simplifying installation and reducing potential points of failure.
-
Heavy-Duty Camera: Engineered for durability, the camera is designed to endure harsh environments. It offers a wide-angle lens to cover a broad field of view, improving visibility behind your vehicle.
-
Night Vision Capability: Equipped with infrared LEDs, the camera ensures visibility even in low-light conditions, enhancing safety during night-time reversing.
-
Weatherproof Design: Both the camera and monitor are built to withstand the elements, making them suitable for all-weather use.
-
Ease of Installation: The wireless design significantly reduces installation time and complexity. Mount the camera at the rear of your vehicle and position the monitor in your preferred location.
-
Adjustable Camera Angle: The camera can be adjusted to provide the optimal viewing angle, ensuring you have the best possible visibility.
MONITOR
– LCD Size: 178mm (7”)
– Resolution: 1024 x 600
– Contrast: 500:1
– Brightness: 350cd/m2
– Viewing Angle: U: 50 / D:70, R/L: 70
– Aspect Ratio: 16:9
– Parking Guidelines: Yes
– Image Orientation: Mirror/Flip
– Inputs: 1 Channel
– Operating Frequency: 2.4 ~ 2.4835 GHz
– Receiving Sensitivity: -89dBm
– Pairing to Camera/s: Auto when camera activated
– Compression Format: MPEG4
– Modulation: 2.4G FSK/GFSK
– Time Delay: 120ms
– L.O.S Range: 300 Metres (approx)
– Signal System: PAL/NTSC
– Power Supply: DC 9-36V
– Operating Temperature: -20 ~ +70°C
CAMERA
– Image Device: 1/4” CMOS
– Viewing Angle: 120°
– Signal System: PAL
– Effective Pixels: 728 x 488
– Sensing Area: 4.6228mm x 3.6112mm
– Scanning System: 2:1 Interlace
– Sync System: Internal
– S/N Ratio: Better than 48dB
– White Balance: Auto
– Operating Frequency: 2.4 ~ 2.4835 GHz
– Compression Format: MPEG4
– RF Bit Rate: 4Mbps
– Minimum Illumination: 0 Lux (24 IR LEDs)
– Ingress Protection: IP67
– Power Supply: DC 10-32V
